CONFER X

64-channel digital automatic mixer

Product Description Functional Features Details Components Accessories Support

Product Description

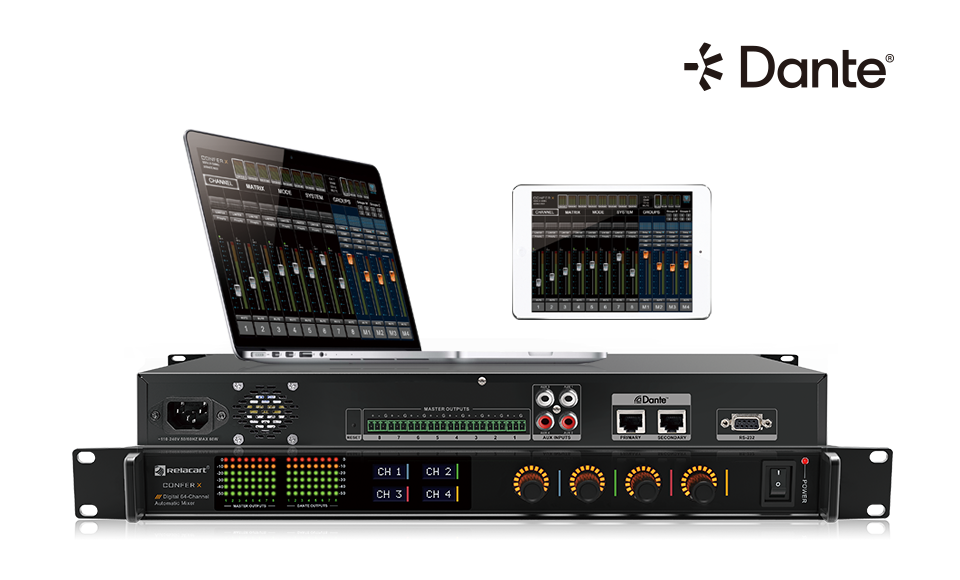

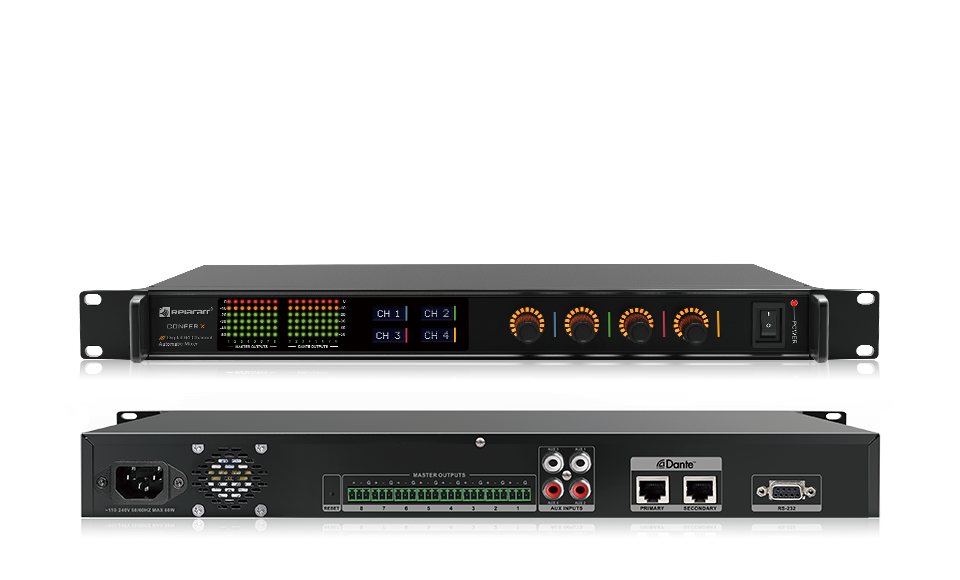

CONFER X is a digital automatic mixer with 64-channel input and 16-channel output, which is independently developed by Relacart and the global-first creation. 64-channel input, 16-channel output analog and DANTE digital hybrid matrix control are suitable for wider application engineering. 1-32 automatic mixing channels can set each channel independently and open valves. It can set the most suitable valve level according to the environmental noise, echo and the channel near the loudspeaker. It is suitable for any harsh meeting environment. And the hold-time is adjustable, ensure that your meeting is smoother.

Functional Features

TCP/IP connection mode

The main controller adopts TCP/IP connection mode, and can be connected with special software to realize remote control, remote diagnosis and upgrading of the conference system.

DANTE Digital Sound Card

The built-in DANTE digital sound card connects the mixer to any Dante device.

High pass filter.

Full digital signal processing, built-in high pass and low pass filters, limiter, matrix, etc. The basic operation is connected to the computer through special control software, and each channel can be set and adjusted in detail.

HD OLED display

The encoder with scale indication can control the volume of four channels, and any input/output channel can be set to display the volume scale, mute indication, distortion indication and output LINE/MIC indication respectively. Each encoder is equipped with an OLED display screen to display the channel name and channel volume value.

Multichannel analog input conversion

64 channel Dante input, channels 1-32 adopt DSP algorithm for automatic mixing, and channels 33-64 support analog input conversion.

Wide application

64 x 64 Dante and analog mix matrix control for a wider range of applications.

Details

Specifications

Dynamic Range (20 Hz to 20 kHZ, A-weighed, typical)：Digital-to-Analog : 100dB

THD+N Harmonic Distortion 1 kHz, +4 dBu out, mix output (MASTER) at +0 dB：<0.05%

S/NS/N(22 Hz - 22 kHz, RMS, A-Filter)：118dB

Common Mode Rejection Ratio 150Ω balanced source, at 1kHz：>60 dB

Number of input channels：AUXx4、 Dantex64

Maximum Input Level：Channel input AUX Input (Lotus): +25dBu
